Technical Specifications 3G/4G Security Camera
Indoor 3G/4G Video Camera/Alarm
- Real time video streaming to your smartphone.
- Viewable world wide using your 3G/4G smartphone.
- Comes with remote.
- Pan Tilt with your Smartphone (indoor model)
- Adjust Brightness,volume, Zoom using your phone App.
- Day/night (infra red) capability.
- Internal siren
- Listen in from built in microphone.
- Free standing, ceiling or wall mounted.
- Operates independently of any computer or Modem
- All features can be adjusted/changed by Smartphone App commands.
- View stored pictures, video files, logs.
- Auto recovery function if the power is interrupted. No need to reprogram.
- FREE WIRELESS BATTERY DOOR SENSOR INCLUDED.
- FREE WIRELESS BATTERY PIR SENSOR INCLUDED
Technical Parameters
| Image sensor |
1/4" Colour CMOS Sensor |
| Effective camera Distance |
<10m |
| Resolution |
1280 X 720 Pixels (1 MP)
|
| Camera lens angle |
68 degrees |
| Lens |
f=3.6mm |
| Record function |
SD card or Cloud |
| System interface |
3G or 4G |
| Communications module |
900/2100MHz (Vodafone/2degrees) |
| IR distance (10 LEDs) |
10m |
| SD card |
Supports 32 GB |
| Flip/mirror images |
Vertical/Horizontal |
| Wireless sensors |
up to 15 |
| Power input |
DC 5V |
| Supported Protocol |
HTTP,FTP,TCP/IP,UDP,SMTP,DCHP,DDNS,Onvif |
| Video compression |
H264 Main Profile, MPEG4,MJPEG |
| Operating temperature range |
-10 ~ +45 degrees celcius |
| Operating humidity range |
5% ~ 80% |
| Storage temperature range |
-20 ~ +60 degrees celcius |
| Size |
130mm high 100mm wide 140mm Deep |
Outdoor 3G/4G Video Camera/Alarm
- Real time video streaming to your smartphone.
- Viewable world wide using your 3G/4G smartphone.
- 4 Motion detect zones programmable.
- Adjust Brightness,volume, Zoom using your phone App.
- Day/night (infra red) capability.
- Ceiling or wall mounted.
- Operates independently of any computer or Modem
- All features can be adjusted/changed by Smartphone App commands.
- View stored pictures, video files, logs.
- Auto recovery function if the power is interrupted. No need to reprogram.
Technical Parameters
| Image sensor |
1/4" Colour CMOS Sensor |
| Lens type |
Glass Lens |
| Resolution |
1280 X 720 Pixels (1 MP) or 1920 x 1080 (2MP)
|
| Camera lens angle |
85 degrees |
| Lens |
f=6mm |
| Record function |
SD card or FTP |
| Timelapse Option |
Yes |
| System interface |
3G or 4G |
| Communications module |
900/2100MHz (Vodafone/2degrees) |
| IR distance (Gen 3 LEDS) |
30m |
| SD card |
Supports 128 GB |
| Flip/mirror images |
Vertical/Horizontal |
| Motion detect |
Up to 4 separately programmed zones within picture |
| Power input |
DC 12V |
| Supported Protocol |
HTTP,FTP,TCP/IP,UDP,SMTP,DCHP,DDNS,Onvif |
| Video compression |
H264 Main Profile, MPEG4,MJPEG |
| Waterproof |
IP65 |
| Operating temperature range |
-10 ~ +45 degrees celcius |
| Operating humidity range |
5% ~ 80% |
| Storage temperature range |
-20 ~ +60 degrees celcius |
| Size |
90mm high 95mm wide 200mm Deep |

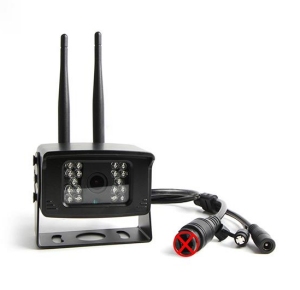

Indoor Outdoor Mini 3G/4G Video Camera/Alarm
- Real time video streaming to your smartphone.
- Viewable world wide using your 3G/4G smartphone.
- 4 Motion detect zones programmable.
- Adjust Brightness,volume, Zoom using your phone App.
- Day/night (infra red) capability.
- Ceiling or wall mounted.
- Operates independently of any computer or Modem
- All features can be adjusted/changed by Smartphone App commands.
- View stored pictures, video files, logs.
- Auto recovery function if the power is interrupted. No need to reprogram.
Technical Parameters
| Image sensor |
1/4" Colour CMOS Sensor |
| Lens type |
Glass Lens |
| Resolution |
1920 x 1080 (2MP)
|
| Camera lens angle |
85 degrees |
| Lens |
f=6mm |
| Record function |
SD card or FTP |
| Timelapse Option |
Yes |
| System interface |
3G or 4G |
| Communications module |
900/2100MHz (Vodafone/2degrees) |
| IR distance (18 LEDS) |
10m |
| SD card |
Supports 128 GB |
| Flip/mirror images |
Vertical/Horizontal |
| Motion detect |
Up to 4 separately programmed zones within picture |
| Power input |
DC 12V |
| Supported Protocol |
HTTP,FTP,TCP/IP,UDP,SMTP,DCHP,DDNS,Onvif |
| Video compression |
H264 Main Profile, MPEG4,MJPEG |
| Waterproof |
IP65 |
| Operating temperature range |
-10 ~ +45 degrees celcius |
| Operating humidity range |
5% ~ 80% |
| Storage temperature range |
-20 ~ +60 degrees celcius |
| Size |
45mm high (excluding bracket) 75mm wide 65mm Deep |
|
